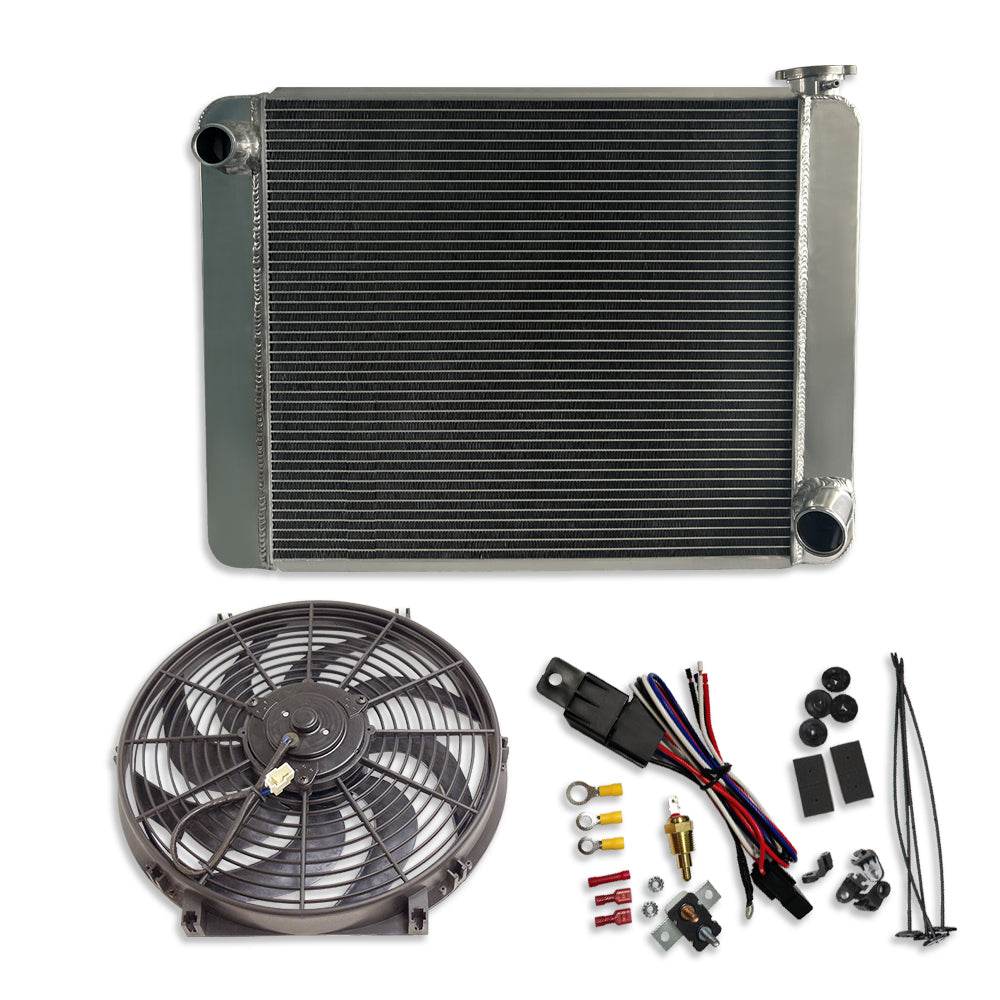

Cooling Fan
14" Electric Fan is set up as a puller, it can be reserved for pusher by reversing the blade
Fan is 2550 Tested CFM, 12 VOLT, 4.0A-5.0A, 2025 RPM.
4 Point Mounting bracket is included
Measurement of fan:14" X 14 3/4" X 3" thick
High torque motor, sealed ball bearings. Blanced curved blades ensures low noise levels and long life
Radiator:
Overall size:25 3/8"W x 18 1/4"H x3"D
Core size: 19 1/8 *17 3/4 *1 7/8
Inlet:1 1/2", Outlet: 1 3/4"
Universal type ,no specific application :fits on almost any street rod application. This is a high performance polished aluminum radiator for GM/Chevy
Brand new GM style Competition Row Radiator
The upper and lower outlets are set up for a Chevy engine.100% Tig welded, no epoxy!
2 row radiator with 1" tubes
Crossflow Design for better Cooling
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)
No Built in Transmission Cooler
without bracket
