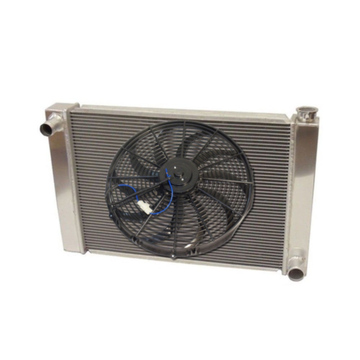

Radiator:
Overall size: 21 7/8 * 18 1/2 * 3 1/8
Core size: 16 1/4 *17 5/8 *2 1/4
Inlet:1 1/2"
Outlet: 1 3/4"
--Universal type,no specific application,fits on almost any street rod application.
--GM style Competition Row Radiator
--The upper and lower outlets are set up for a Chevy engine.100% Tig welded, no epoxy!
--2 row radiator with 1" tubes
--Crossflow Design for better Cooling
--2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)
--No Built in Transmission Cooler
Cooling Fan:
--Heavy duty 16" 3000 cfm radiator electric fan
--16" Electric fan is set up as a puller, it can be reversed for pusher by reversing the blade
--Fan is 3000 tested cfm, 12 volt, 15 amp
--Size: 15 3/4" x 16 1/4" x 3 1/2" thick
--High torque motor, sealed ball bearings, & balanced curved blades ensures low noise levels and long life
--It is a great electric fan for your hot rod or street rod
--Fits most hot rods and classics engines including gm (Chevy, Gmc, Olds, Cadillac, Pontiac, Buick, Ford, Mopar (Chrysler, Dodge, Plymouth)
--Fits 265 283 305 307 327 350 383 400 396 402 427 454 472 502 260 289 302 351w 347 352 360 390 406 427 428 429 460 351c 351m 400m 273 318 340 360 361 383 400 413 426w 440 455 330 326 engines
