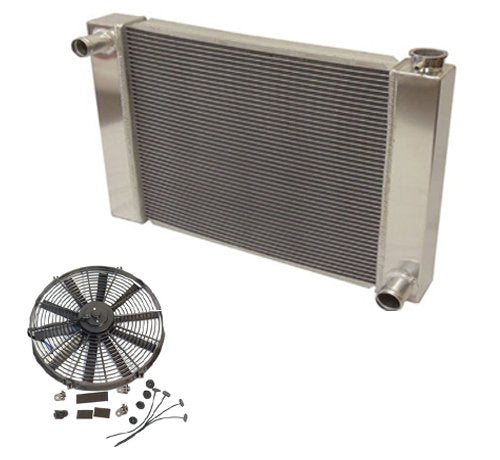

Radiator:
Overall size: 21 7/8 * 18 1/2 * 3 1/8
Core size: 16 1/4 *17 5/8 *2 1/4
Inlet:1 1/2"
Outlet: 1 3/4"
--Universal type, no specific application, fits on almost any street rod application.
--This is a high preformance polished aluminum radiator for GM/Chevy
--The upper and lower outlets are set up for a Chevy engine. 100% Tig welded, no epoxy!
--2 row radiator with 1" tubes
--Crossflow Design for better Cooling
--2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)
--No Built in Transmission Cooler
Fan:
--100% Brand New Electric 10" 12 volt black Straight blade reversible cooling fan
--Ideal for OEM or high performance applications.
--and would be a quality addition to any vehicle.
--10" straight blades
--Measures 10 3/4" wide X 11 1/2" tall and 2 1/2" deep at motor.
--Cfm is approximately 850 and draw 5 Amps.
--This fan is very powerful, light weight, and efficient and has a computer balanced blade for smoother operation
