For SBC BBC Chevy GM Fabricated Aluminum Radiator 21" x 19" x3"&Heavy Duty 16" Radiator Cooling Fan
For SBC BBC Chevy GM Fabricated Aluminum Radiator 21" x 19" x3"&Heavy Duty 16" Radiator Cooling Fan
Regular price
$ 140.06 USD
Regular price
Sale price
$ 140.06 USD
Unit price
/
per
Couldn't load pickup availability
Radiator:
Dimension:
overall size: 21 *18 1/2 * 3 1/4.
core size: 15 1/4 *17 5/8 *1 7/8.
Inlet:1 1/2"
Outlet: 1 3/4"
Application:
Universal type,no specific application
fits on almost any street rod application.
Description:
Brand new GM style Competition Row Radiator.
The upper and lower outlets are set up for a Chevy engine.
100% Tig welded, no epoxy!2 row radiator with 1" tubes.
Crossflow Design for better Cooling.
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall).
No Built in Transmission Cooler
Fan:
This is a new 16" S Blade Fan 12 volt high performance reversible electric cooling fan.
Ideal for OEM or high performance applications.
Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator.
--They are manuactured to be durable and features an extreme duty 12 volt motor. Slim line high flow fan and moves 2500-2800 CFM of air.
--Approximate 10-13 amp draw.
Package: --including all items in the picture.
Note?Professional Installation is Highly Recommended (No Instruction and Wiring Diagram Included)
Dimension:
overall size: 21 *18 1/2 * 3 1/4.
core size: 15 1/4 *17 5/8 *1 7/8.
Inlet:1 1/2"
Outlet: 1 3/4"
Application:
Universal type,no specific application
fits on almost any street rod application.
Description:
Brand new GM style Competition Row Radiator.
The upper and lower outlets are set up for a Chevy engine.
100% Tig welded, no epoxy!2 row radiator with 1" tubes.
Crossflow Design for better Cooling.
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall).
No Built in Transmission Cooler
Fan:
This is a new 16" S Blade Fan 12 volt high performance reversible electric cooling fan.
Ideal for OEM or high performance applications.
Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator.
--They are manuactured to be durable and features an extreme duty 12 volt motor. Slim line high flow fan and moves 2500-2800 CFM of air.
--Approximate 10-13 amp draw.
Package: --including all items in the picture.
Note?Professional Installation is Highly Recommended (No Instruction and Wiring Diagram Included)
Share

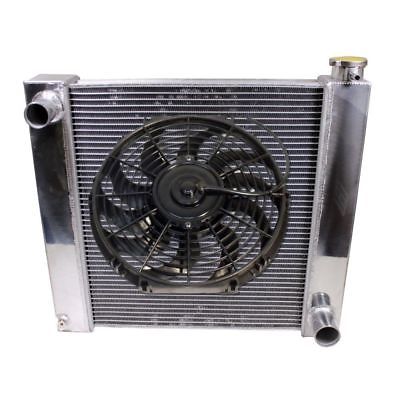

![For SBC BBC Chevy GM Fabricated Aluminum Radiator 21" x 19" x3"&Heavy Duty 16" Radiator Cooling Fan](http://demotoring.com/cdn/shop/products/1_3b1ec60a-c94a-4085-941e-7d5e7629ece0.jpg?v=1536916366&width=1445)
