For SBC BBC Chevy GM Fabricated Aluminum Radiator 21" x 19" x3"&Chrome 16" Cooling Fan

Radiator:
Dimension:
overall size: 21 *18 1/2 * 3 1/4.
core size: 15 1/4 *17 5/8 *1 7/8.
Inlet:1 1/2"Outlet: 1 3/4"
Application:
Universal type,no specific application
fits on almost any street rod application.
Description:
Brand new GM style Competition Row Radiator.
The upper and lower outlets are set up for a Chevy engine.
100% Tig welded, no epoxy!2 row radiator with 1" tubes.
Crossflow Design for better Cooling.
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall).
No Built in Transmission Cooler


Fan:
--100% Brand New Electric 16" chrome curved blade reversible cooling fan measuring approximately 16-1/4" x 15-3/4" x 3-1/4".
--Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator.
--It is very powerful,light weight,and efficient and has a computer balanced blade for smoother operation
--These fans are manuactured to be durable and features an extreme duty 12 volt motor. Slim line high flow fan and moves 2500-2800 CFM of air. Approximate 10-13 amp draw.
Package:

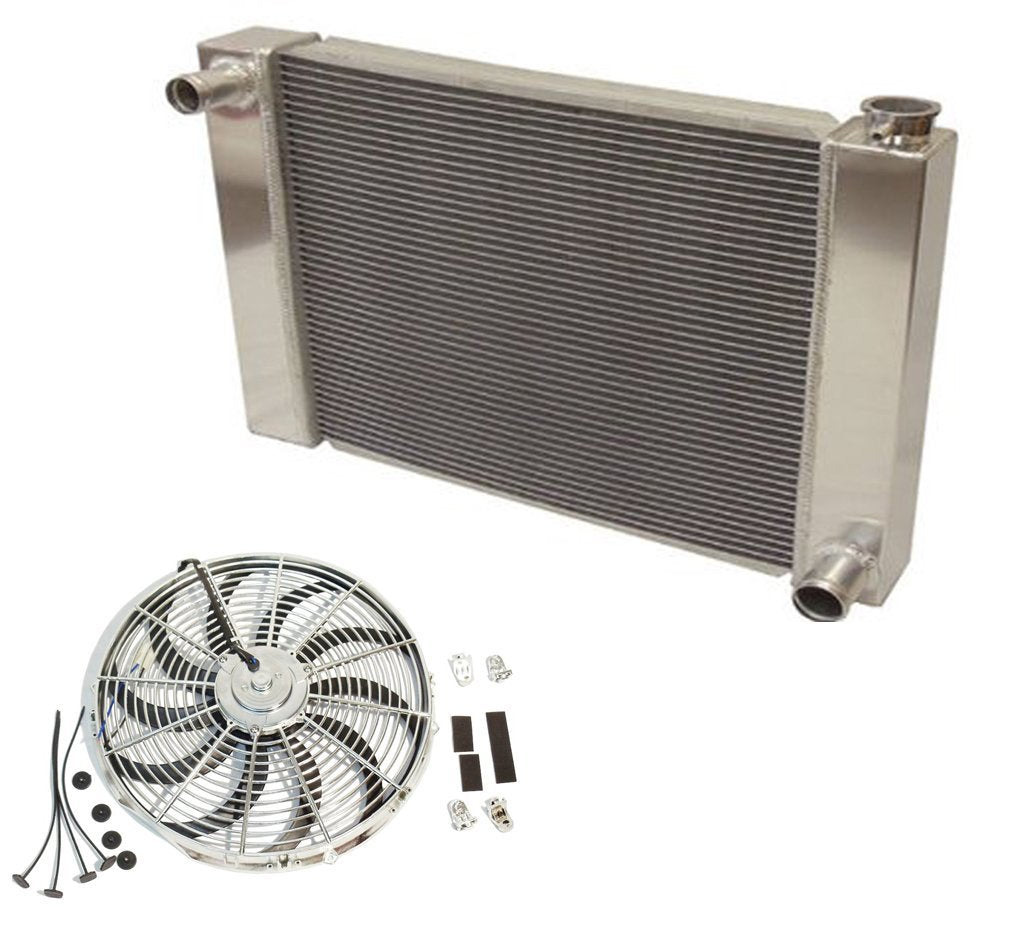

--Including all items in the picture.
