Fabricated Aluminum Radiator 31" x 19" x3" Overall For SBC BBC Chevy GM & Electric Curved S Blade 16" Radiator Cooling Fan

Radiator:

Dimension:Overall size: 31 1/8"W x18 3/8"H x3 1/8"D

Core size: 25 1/2" x18 5/8" x2 1/4"

Inlet:1 1/2"

Outlet: 1 3/4"

Application:Universal type no specific

application:fits on almost any street rod application.

Description:

Brand new GM style Competition Row RadiatorThe upper and lower outlets are set up for a Chevy engine.100% Tig welded, no epoxy!

2 row radiator with 1" tubesCrossflow Design for better Cooling2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)No Built in Transmission Cooler

Fan

This is a new 16" S Blade Fan 12 volt high performance reversible electric cooling fan. Ideal for OEM or high performance applications. Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator. They are manuactured to be durable and features an extreme duty 12 volt motor. Slim line high flow fan and moves 2500-2800 CFM of air. Approximate 10-13 amp draw.

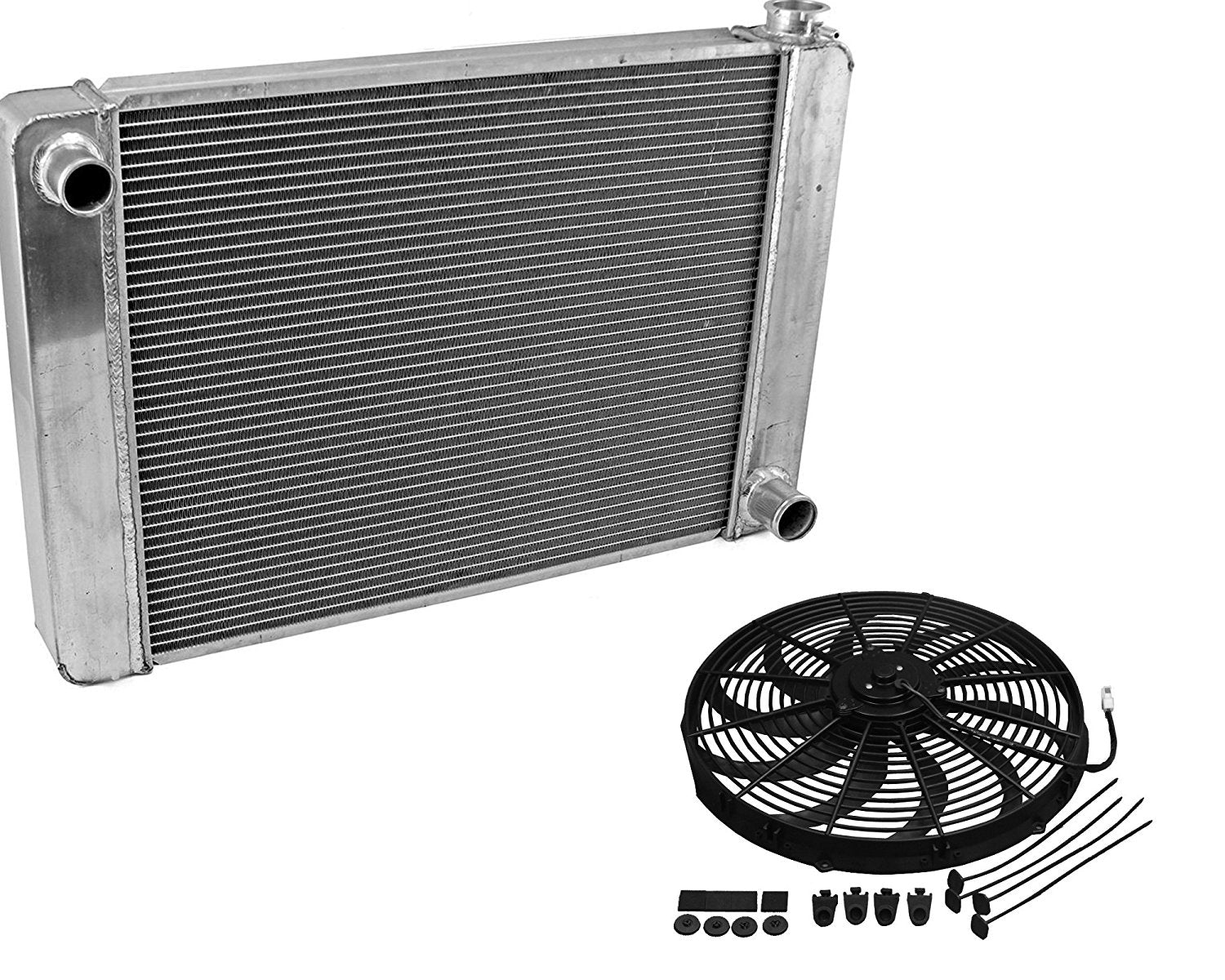

Package:Including all items in the picture.

Note:Professional Installation is Highly Recommended (No Instruction and Wiring Diagram Included)
