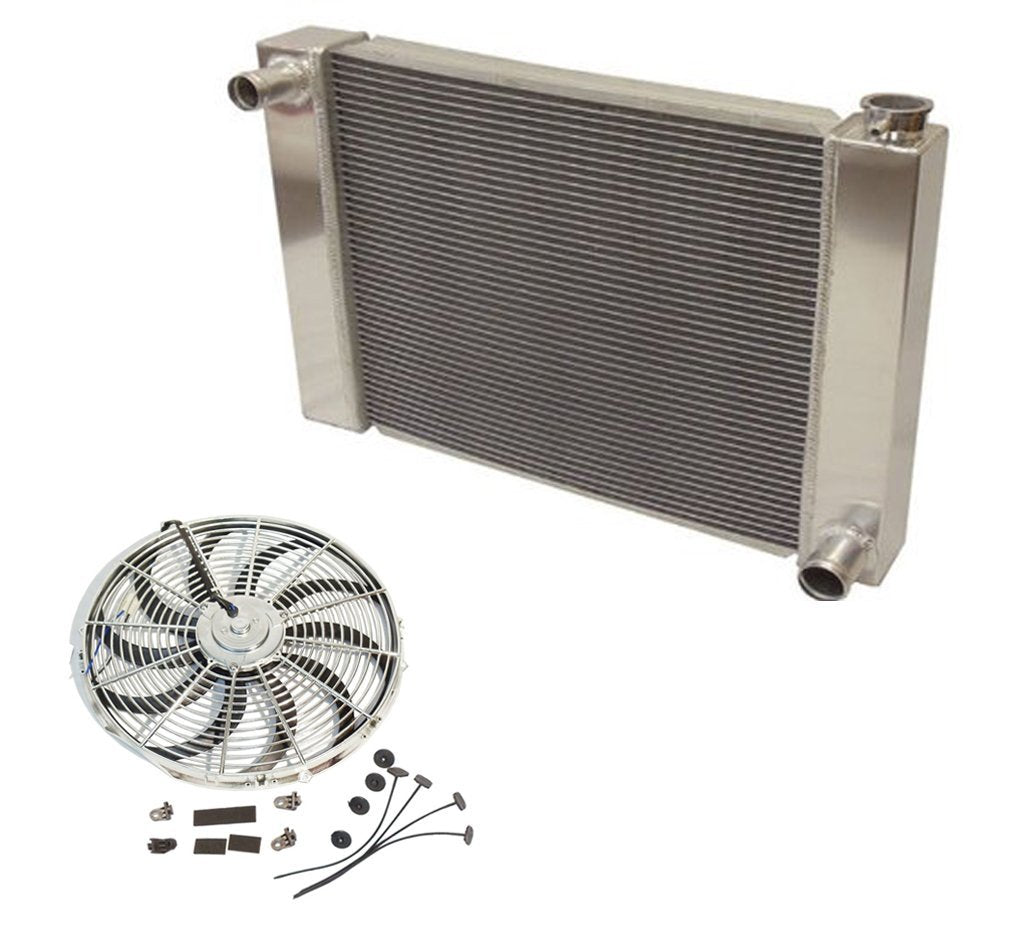

Fabricated Aluminum Radiator 31" x 19" x3" Overall For SBC BBC Chevy GM & Chrome Heavy Duty 16" Radiator Electric Fan

Radiator:

Dimension:

Overall size: 31 1/8"W x18 3/8"H x3 1/8"D

Core size: 25 1/2" x18 5/8" x2 1/4"

Inlet:1 1/2"

Outlet: 1 3/4"

Application:Universal type ?no specific application ?fits on almost any street rod application.

Description:Brand new GM style Competition Row Radiator

The upper and lower outlets are set up for a Chevy engine.100% Tig welded, no epoxy!2 row radiator with 1" tubesCrossflow

Design for better Cooling2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)No Built in Transmission Cooler

Fan

--100% Brand New Electric 16" heavy duty chrome curved blade reversible cooling fan measuring approximately 16-1/4" x 15-3/4" x 3-1/4".

--Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator.

--It is very powerful,light weight,and efficient and has a computer balanced blade for smoother operation

--These fans are manuactured to be durable and features an extreme duty 12 volt motor. Slim line high flow fan and moves 2500-2800 CFM of air.

--Approximate 10-13 amp draw.

Package:Including all items in the picture.

Note:Professional Installation is Highly Recommended (No Instruction and Wiring Diagram Included)
