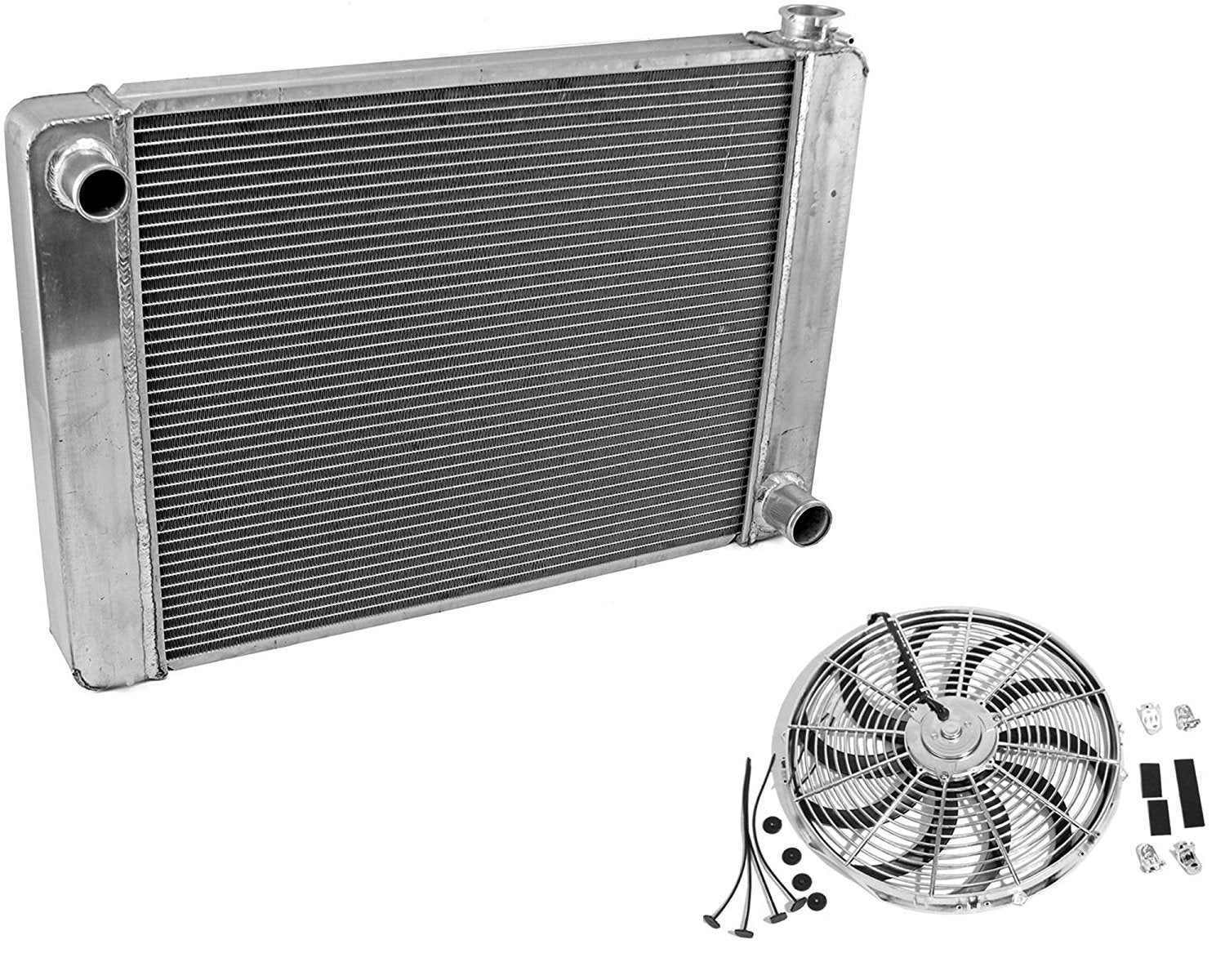

Fabricated Aluminum Radiator 31" x 19" x3" Overall For SBC BBC Chevy GM & 12" Chrome Electric Curved Blade Cooling Fan

Radiator:

Dimension:

Overall size: 31 1/8"W x18 3/8"H x3 1/8"D

Core size: 25 1/2" x18 5/8" x2 1/4"

Inlet:1 1/2"

Outlet: 1 3/4"

Application:Universal type no specific

application: fits on almost any street rod application.

Description:Brand new GM style Competition Row Radiator The upper and lower outlets are set up for a Chevy engine.100% Tig welded, no epoxy!2 row radiator with 1" tubesCrossflow

Design for better Cooling2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)No Built in Transmission Cooler Fan

Description:

--100% Brand New Electric 12" black curved blade reversible Chrome cooling fan

--Measuring approximately 12.5" x 11-1/2" x 2-1/2".

--Draws approximately 7-9 amps.--S-blade design maximizes CFM output over straight-blade designs. Ideal for OEM or high performance applications. Durable reinforced plastic housing. Perfect for use in tandem on tight clearance applications or as a single unit.

--This 12 volt fan has an output of approximately 1400 CFM, and would be a quality addition to any vehicle.

Package:A 31" x 19" x3" Overall Radiator & A 12"Fan and Core Mounting Kit

Note:Professional Installation is Highly Recommended (No Instruction and Wiring Diagram Included)
