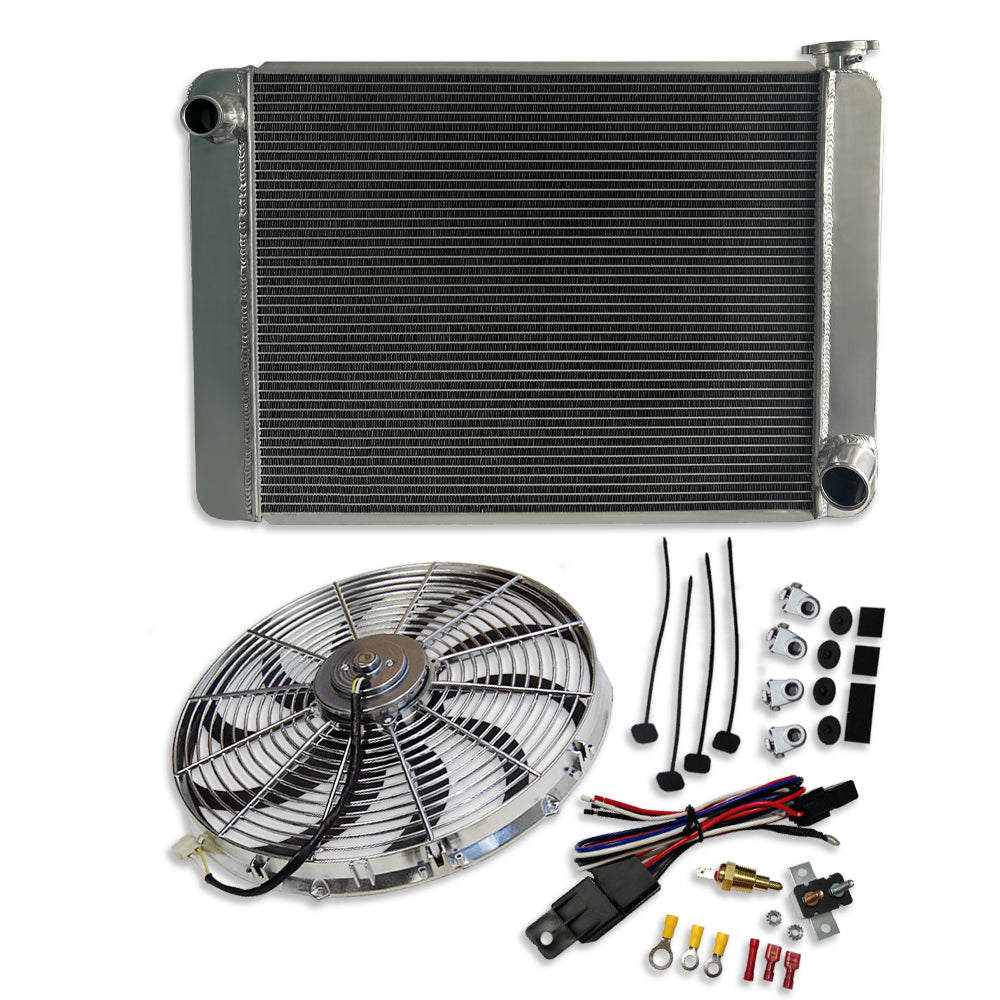

Radiator:
overall size: 28 7/8"W x18 5/8"H x3 1/4"D
core size: 23 1/8" x18 5/8" x2 1/4"
inlet: 1-1/2"
outlet: 1-3/4"
Universal type,no specific application,fits on almost any street rod application.
Brand new GM style Competition Row Radiator
This is a high performance aluminum radiator for GM/Chevy
The upper and lower outlets are set up for a Chevy engine.100% Tig welded, no epoxy!
2 row radiator with 1" tubes
Crossflow Design for better Cooling
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)
No Built in Transmission Cooler
Cooling Fan:
--100% Brand New Electric 16" chrome curved blade reversible cooling fan measuring approximately 16-1/4" x 15-3/4" x 3-1/4".
--Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator.
--It is very powerful,light weight,and efficient and has a computer balanced blade for smoother operation
--These fans are manuactured to be durable and features an extreme duty 12 volt motor.
--Slim line high flow fan and moves 2500-2800 CFM of air.Approximate 10-13 amp draw.
--Thermostat comes on at 200 degree and turns off 180 degree
