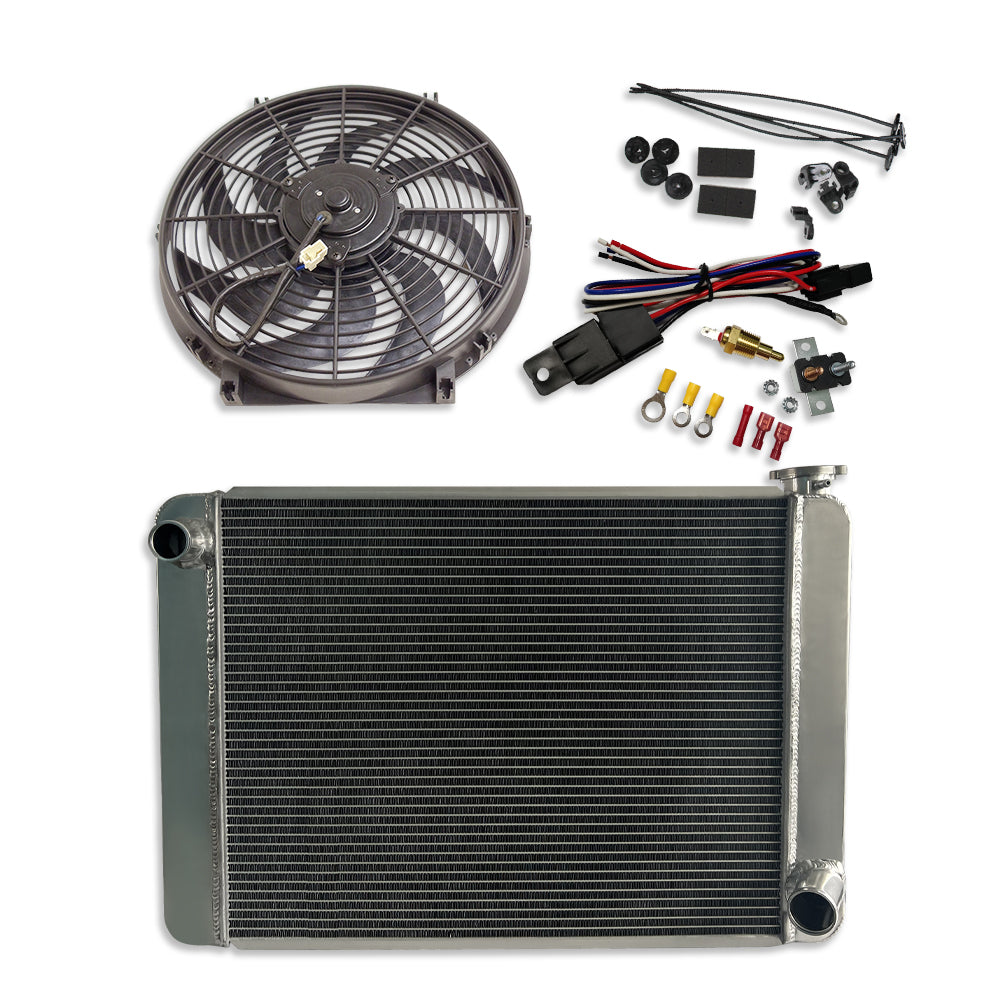

Radiator:
Overall size: 28 7/8"W x18 5/8"H x3 1/4"D
Core size: 23 1/8" x18 5/8" x2 1/4"
Inlet:1 1/2"; Outlet: 1 3/4"
Brand new GM style Competition Row Radiator. This is a high performance polished aluminum radiator for GM/Chevy
The upper and lower outlets are set up for a Chevy engine. 100% Tig welded, no epoxy!
2 row radiator with 1" tubes
Crossflow Design for better Cooling
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)
No Built in Transmission Cooler
Without bracket
Cooling Fan:
14" Electric Fan is set up as a puller, it can be reserved for pusher by reversing the blade
Fan is 2550 Tested CFM,12 VOLT, 4.0A-5.0A, 2025 RPM.
4 Point Mounting bracket is included
Measurement of fan:14" X 14 3/4" X 3" thick
High torque motor, sealed ball bearings. Blanced curved blades ensures low noise levels and long life
Thermostat comes on at 200 and turns off 180
