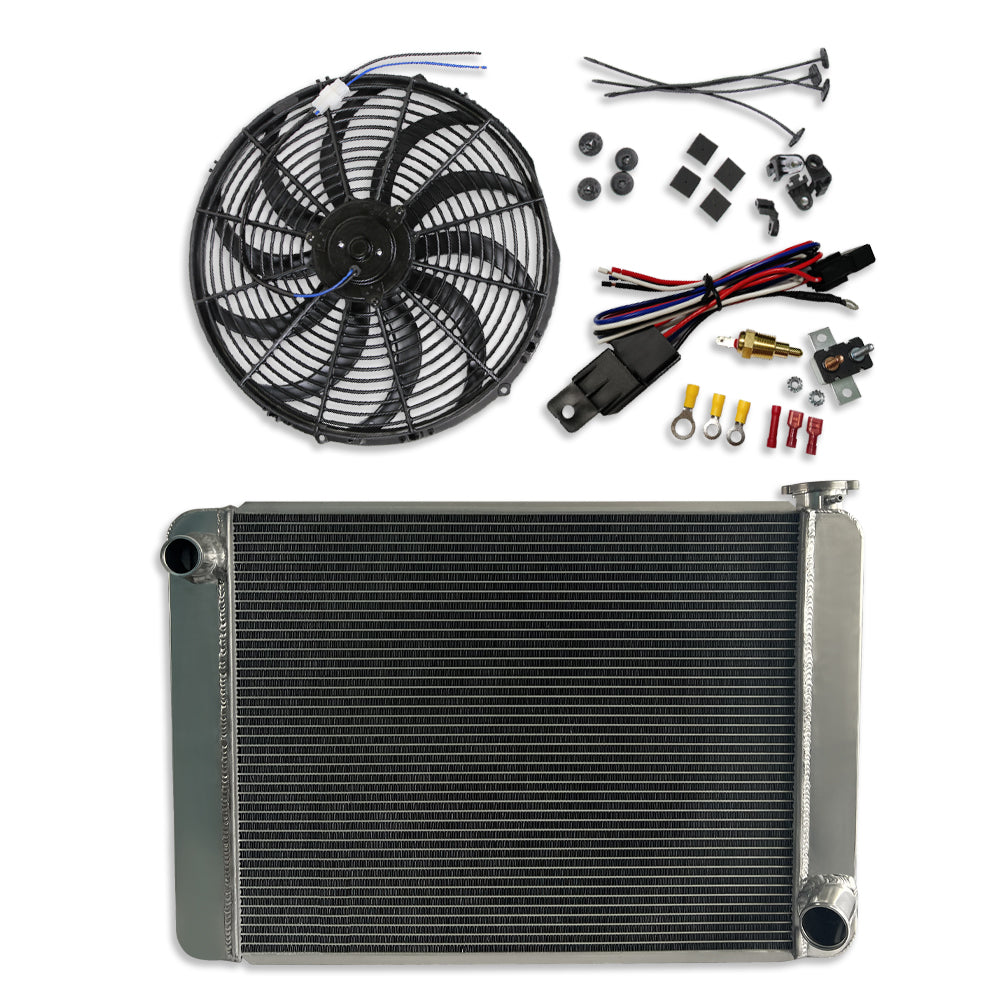

Radiator:
overall size: 28 7/8"W x18 5/8"H x3 1/4"D
core size: 23 1/8" x18 5/8" x2 1/4"
inlet: 1-1/2"
outlet: 1-3/4"
--Universal type,no specific application,fits on almost any street rod application.
This is a high performance polished aluminum radiator for GM/Chevy
Brand new GM style Competition Row Radiator
The upper and lower outlets are set up for a Chevy engine. 100% Tig welded, no epoxy!
2 row radiator with 1" tubes
Crossflow Design for better Cooling
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)
No Built in Transmission Cooler
Cooling Fan:
This is a new 16 inch S Blade Fan 12 volt high performance reversible electric cooling fan.
Ideal for OEM or high performance applications.
Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator.
They are manuactured to be durable and features an extreme duty 12 volt motor. Slim line high flow fan and moves 2500-2800 CFM of air.
Approximate 10-11 amp draw.
Thermostat comes on 200° and turns off 180°
