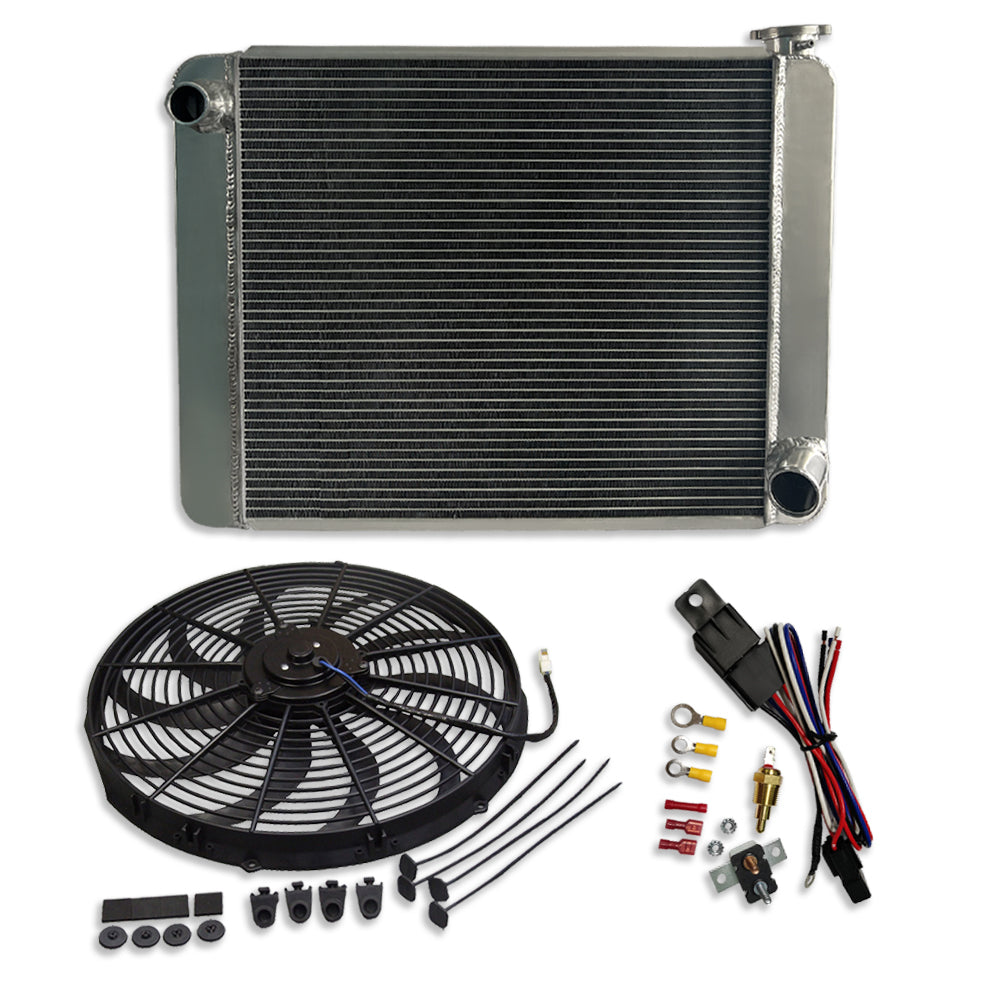

Fabricated Polished Aluminum Radiator 25" x 19" x 3" For SBC BBC & 16" Electric Fan & Thermostat Switch Relay Kit
Fabricated Polished Aluminum Radiator 25" x 19" x 3" For SBC BBC & 16" Electric Fan & Thermostat Switch Relay Kit
Couldn't load pickup availability
Cooling Fan:
16" electric fan is set up as a puller, it can be reversed for pusher by reversing the blade
Fan is 2500 tested cfm, 12 volt
Measurement of fan: 16 x 16 1/2 x 3 thick
High torque motor, sealed ball bearings & balanced curved blades ensures low noise levels and long life
This is a great electric fan for your hot rod or street rod
Thermostat comes on 200° and turns off 180°
Radiator:
Dimension:
Overall size:25 3/8"W x 18 1/4"H x3"D
Core size: 19 1/8 *17 3/4 *1 7/8
Inlet:1 1/2",Outlet: 1 3/4"
Universal type ,no specific application :fits on almost any street rod application. This is a high performance polished aluminum radiator for GM/Chevy
Brand new GM style Competition Row Radiator
The upper and lower outlets are set up for a Chevy engine.100% Tig welded, no epoxy!
2 row radiator with 1" tubes
Crossflow Design for better Cooling
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)
No Built in Transmission Cooler
without bracket
