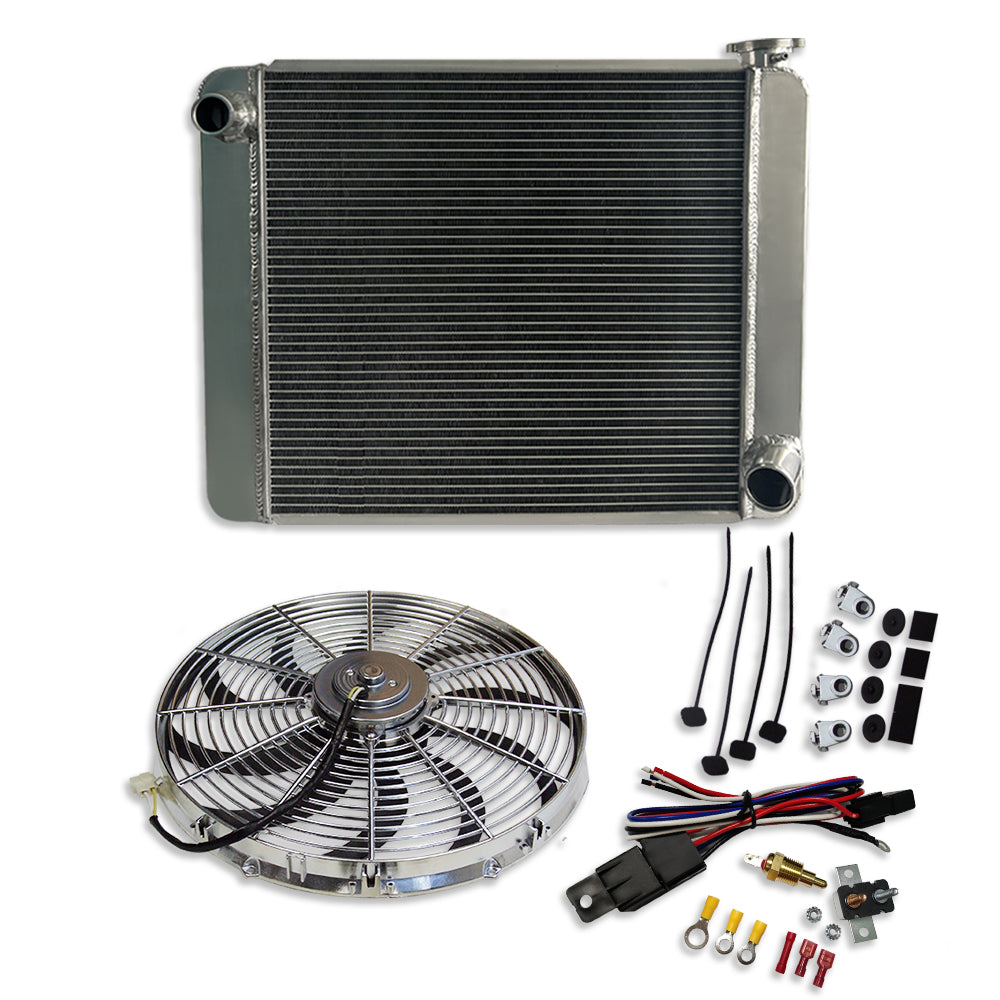

Radiator:
overall size: 23 7/8"W x 18 3/8"H x3"D
core size: 18 1/4 " x 17 5/8" x 2 1/4"
Inlet:1 1/2"
Outlet: 1 3/4"
Universal type,no specific application,fits on almost any street rod application.
This is a high performance polished aluminum radiator for GM/Chevy
2 row radiator with 1" tubes
Crossflow Design for better Cooling
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)
No Built in Transmission Cooler
Brand new GM style Competition Row Radiator The upper and lower outlets are set up for a Chevy engine.100% Tig welded, no epoxy!
Cooling Fan:
--100% Brand New Electric 16" chrome curved blade reversible cooling fan measuring approximately 16-1/4" x 15-3/4" x 3-1/4".
--Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator.
--It is very powerful,light weight,and efficient and has a computer balanced blade for smoother operation
--These fans are manuactured to be durable and features an extreme duty 12 volt motor. Slim line high flow fan and moves 2500-2800 CFM of air. Approximate 10-13 amp draw.
--Thermostat comes on 200° and turns off 180°
