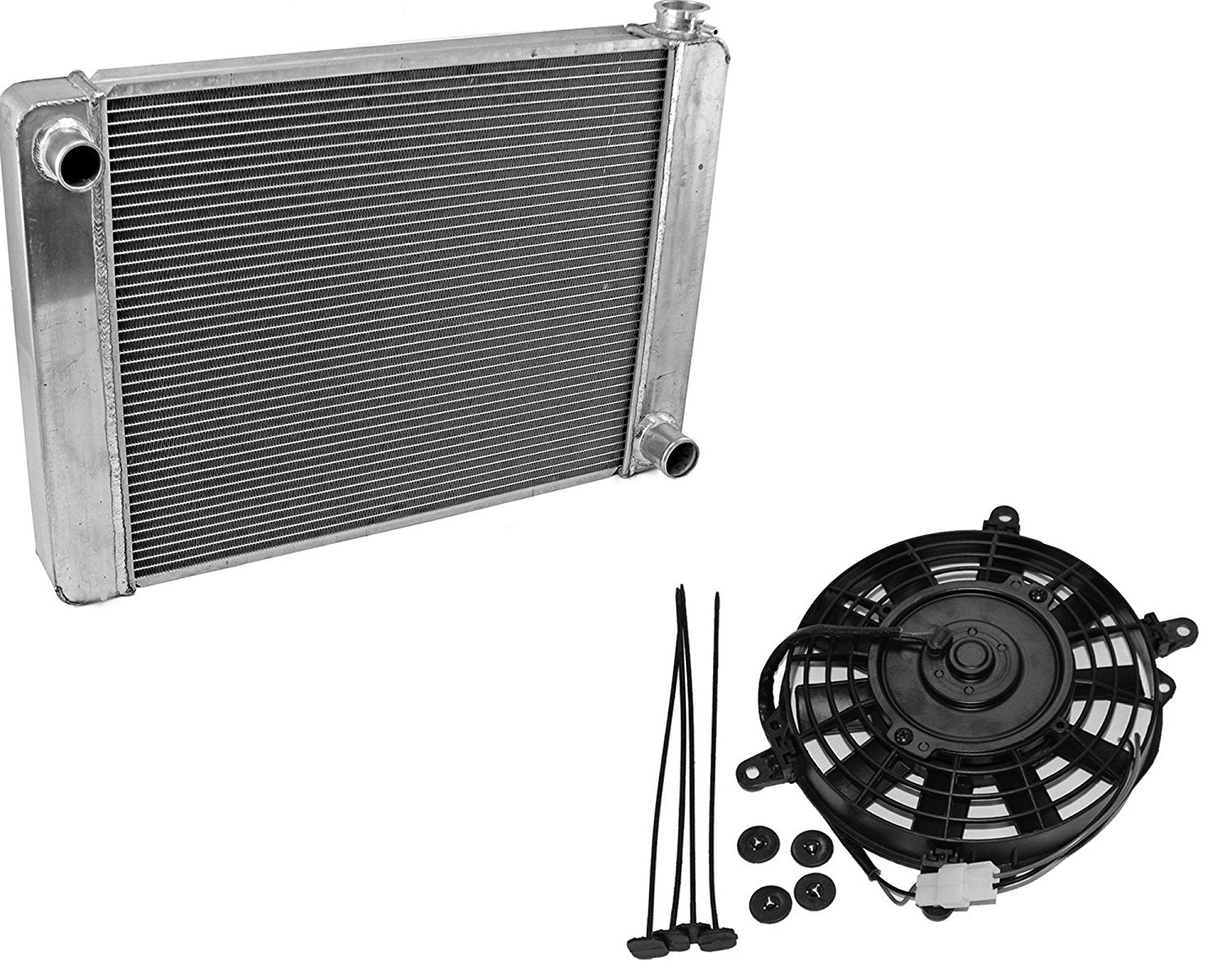

Fabricated Aluminum Radiator 24" x 19" x 3" Overall For SBC BBC Chevy GM&8" Heavy Duty Staight Blade Electric Cooling Fan

Radiator:
Dimension?
overall size: 23 7/8"W x 18 3/8"H x3"D
core size: 18 1/4 " x 17 5/8" x 2 1/4"
Inlet:1 1/2",Outlet: 1 3/4"
Application?
Universal type,no specific application,fits on almost any street rod application.
Description?
2 row radiator with 1" tubes
Crossflow Design for better Cooling
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)
No Built in Transmission Cooler
Brand new GM style Competition Row Radiator The upper and lower outlets are set up for a Chevy engine.100% Tig welded, no epoxy!


Cooling Fan:
100% Brand New High performance Heavy Duty Electric 8" black straight blade reversible cooling fan.
Measuring approximately 9" x 9" x 2-1/2".
This 12 volt fan has an output of approximately 1700 CFM, and would be a quality addition to any vehicle.
This fan is very powerful,light weight,and efficient and has a computer balanced blade for smoother operation
Package:including all items in the picture.Note?Professional Installation is Highly Recommended (No Instruction and Wiring Diagram Included)
