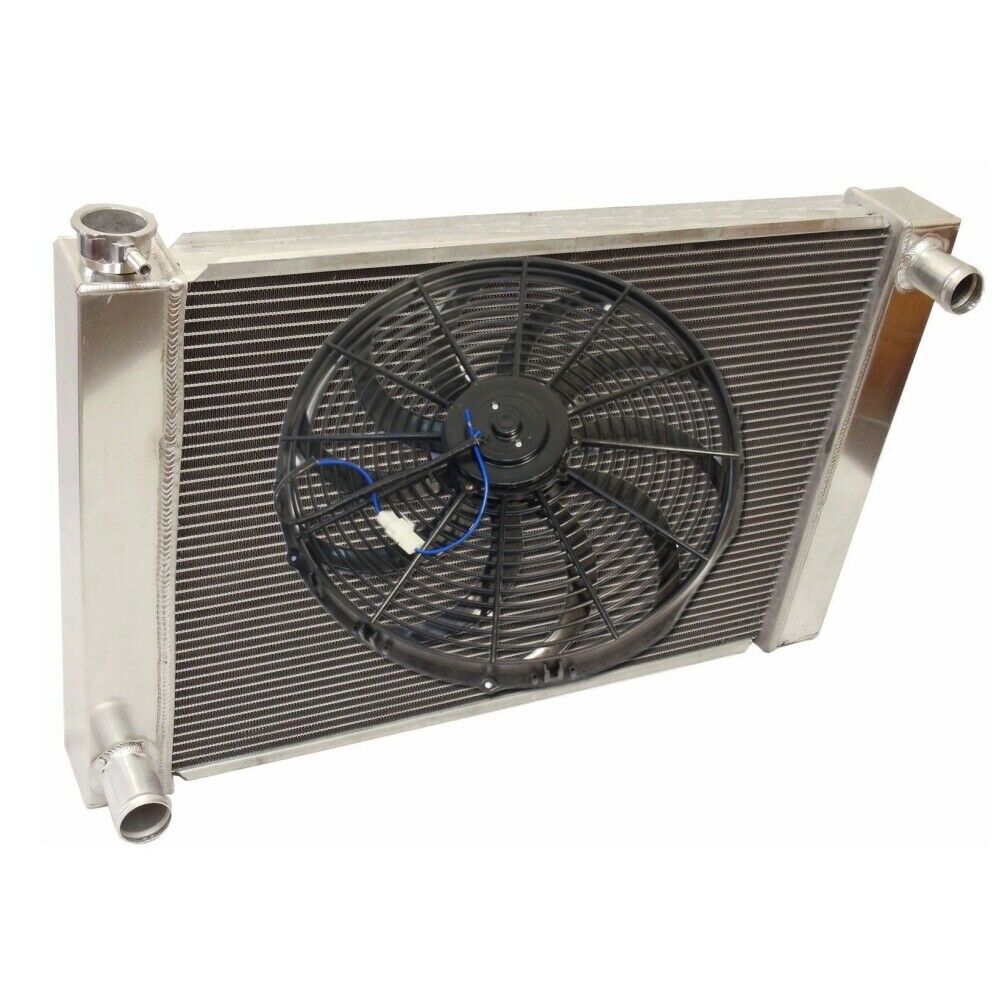

Radiator: Dimension: overall size :27.5"W X 19"H X 3"D, core size: 21 1/8" X17 5/8" X1 7/8, Inlet:1 1/2",Outlet: 1 3/4" Application: --Universal type :no specific application fit on almost any street rod application. Description --The upper and lower outlets are set up for a Ford engine. 100% Tig welded, no epoxy! 2 row radiator with 1" tubes. Crossflow Design for better Cooling. without bracket
Fan: This is 16" S Blade Fan 12 volt high performance reversible electric cooling fan. Ideal for OEM or high performance applications. Configured as a puller from the factory, it mounts on the inside and pulls the air through the radiator. --They are manuactured to be durable and features an extreme duty 12 volt motor. Slim line high flow fan and moves 2500CFM of air. --Approximate 6.5-7.5 amp draw.
Package: including all items in the picture.
Note: Professional Installation is Highly Recommended (No Instruction and Wiring Diagram Included)
