Adjustable Proportioning Valve & 2 + 10 lbs Residual Proportioning Valve Kit
Adjustable Proportioning Valve & 2 + 10 lbs Residual Proportioning Valve Kit
DESCRIPTION
Universal Adjustable Proportioning Valve
--Finish: Chrome
--Adjustable proportioning valves are essentially pressure reducing valves and are often utilized in disc/drum, disc/disc and drum/drum braking systems.
--The valve is used to control front-to-rear brake pressure bias and will work for all types of vehicles.
--Install this valve between the distribution block and the rear flex hose in the front-to rear rigid brake line.
--Always use tube wrenches to tighten fittings properly.
--Final settings of this valve will depend on your particular vehicle, and individual preference.
--3/8-24 IFF fitting size
--Pressure adjustments range 100-1000 PSI and provide for a maximum decrease of 57% in line pressure.
--“IN” (Stamped on valve) – Rigid brake line from the distribution block to this port. On early cars: the master cylinder rear port to this port.
--“OUT” (Stamped on valve) – Rigid brake line to the rear flex hose.
--“DECREASE” – Reduces the brake line pressure to the rear brakes.
--“INCREASE” – Increases the pressure to the rear brakes.
residual pressure valve
--1-2lb Residual Valve - Anodized Blue
--1-10lb Residual Valve - Anodized Red
--Feature Heavy Duty Rating
--Input Threads 3/8-24
--Output Threads 3/16" Compression fitting
--Length 3"
--Nostalgic Look
--Features Modern Technology

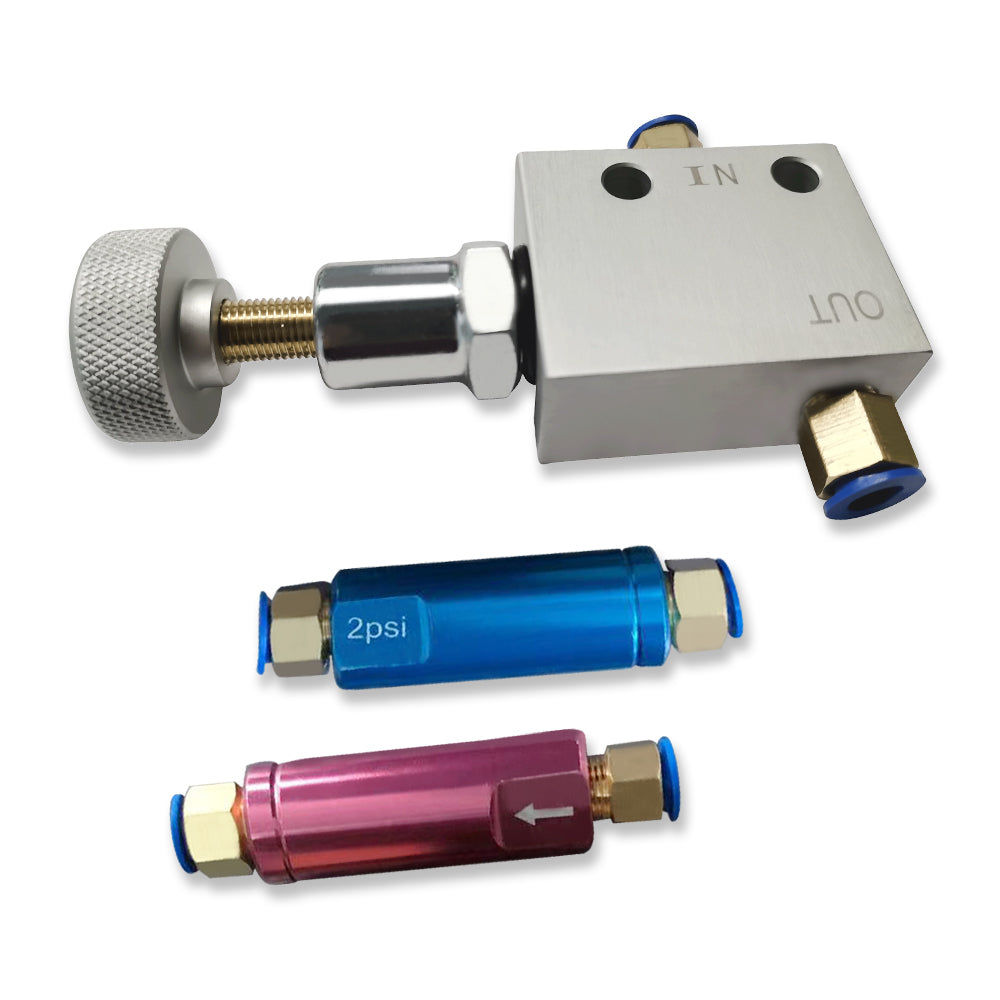

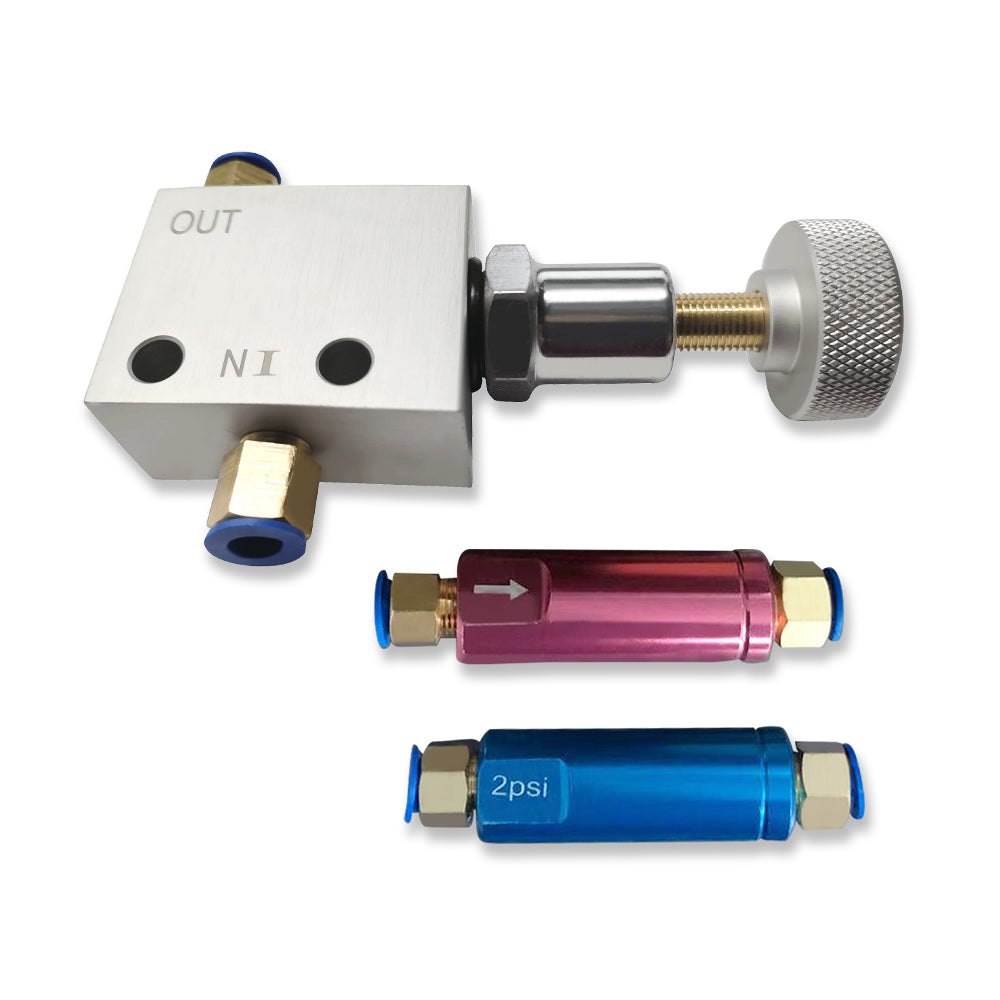

Package: including all items in the picture.
Note: Professional Installation is Highly Recommended. Installation Instruction is NOT Included.
