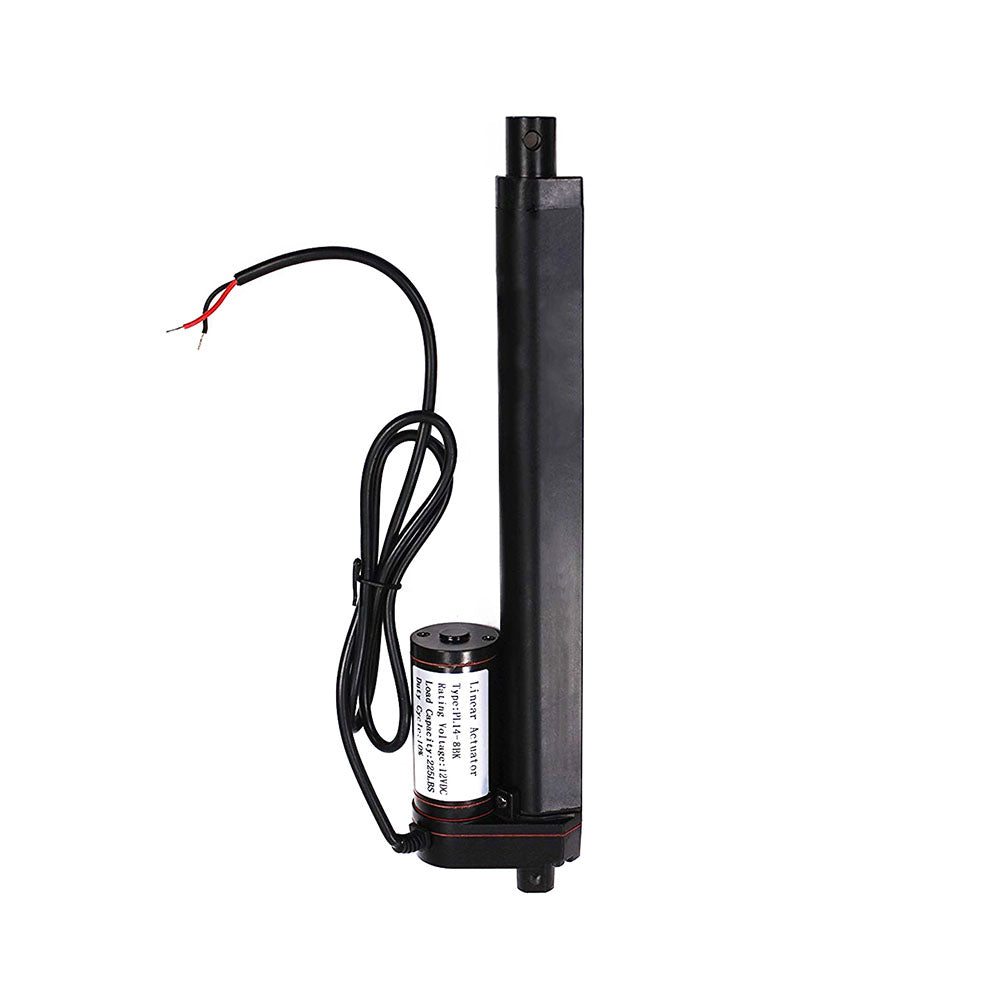

8 Inch 8" Stroke Linear Actuator 12 Volt 12V 225 Pounds lbs Maximum Lift,Black
8 Inch 8" Stroke Linear Actuator 12 Volt 12V 225 Pounds lbs Maximum Lift,Black
Couldn't load pickup availability
Material: Made of high quality aluminum alloy, sturdy and durable.
Specification: Stroke Length = 200mm(8"); Retracted length = 308mm(12.13"); Extended Length= 510mm(20.13"); Travel speed = 12 mm/s; Maximum current draw = 4.6 Amps; Maximum Dynamic Load = 225 lbs (900N)
Low noise: silent and stable, make sound lower than 50db, suitable for many situations.
Waterproof: IP55 Rated protection sealed against dust, water, and corrosion suitable for outdoors use.
Wide Applications: Commonly Used in Automotive, home furniture, medical devices, industrial construction and agricultural machineries.
Specification:
Maximum current draw = 4.6 Amps
Maximum Dynamic Load = 225 lbs (900N)
Maximum Static Load = 600 lbs
Retracted length: 12.13"(308mm)
Extended length: 20.13"(510mm)
Diameter of Mounting hole: 0.256"(6.5mm)
Diameter of Shaft: 0.79"(20mm)
Stroke Length: 8 inches
Travel speed: 12 mm/s
