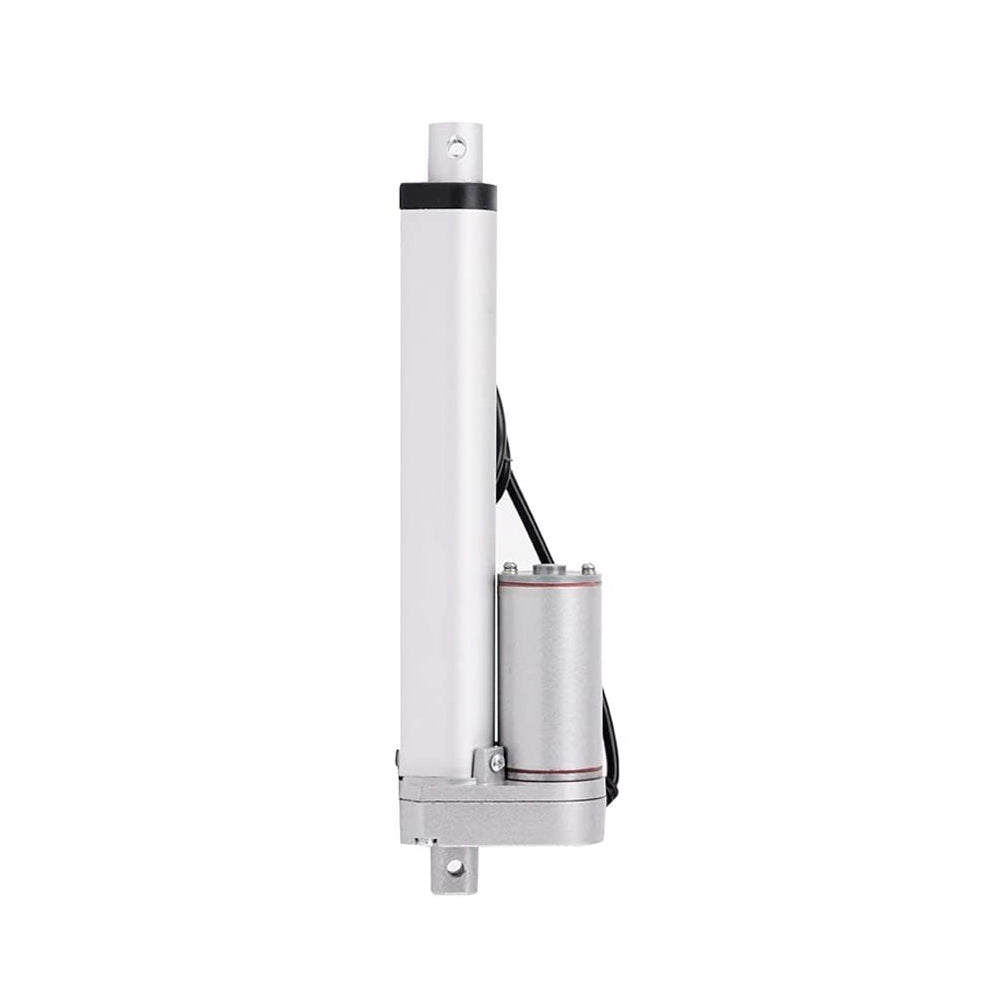

6 Inch Linear Actuator 12 Volt 225 Pounds 4.6 Amp Draw

6 Inch Linear Actuator 12 Volt 225 Pounds 4.6 Amp Draw

Regular price $ 33.99 USD
Regular price Sale price $ 33.99 USD
Sale Sold out

Material: Made of high quality aluminum alloy, sturdy and durable.

Specification: Stroke Length = 150mm(6"); Retracted length = 257mm(10.13"); Extended Length= 409mm(16.13"); Maximum current draw = 4.6 Amps; Maximum Dynamic Load = 225 lbs (900N)

Low noise: silent and stable, make sound lower than 50db, suitable for many situations.

Waterproof: IP55 Rated protection sealed against dust, water, and corrosion suitable for outdoors use.

Wide Applications: Commonly Used in Automotive, home furniture, medical devices, industrial construction and agricultural machineries.


Maximum current draw = 4.6 Amps
Maximum Dynamic Load = 225 lbs (900N)
Maximum Static Load = 600 lbs
Retracted length: 10.13"(257mm)
Extended length: 16.13"(409mm)
Diameter of Mounting hole: 0.256"(6.5mm)
Diameter of Shaft: 0.79"(20mm)
Stroke Length: 6 inches
Travel speed: 10 mm/s
