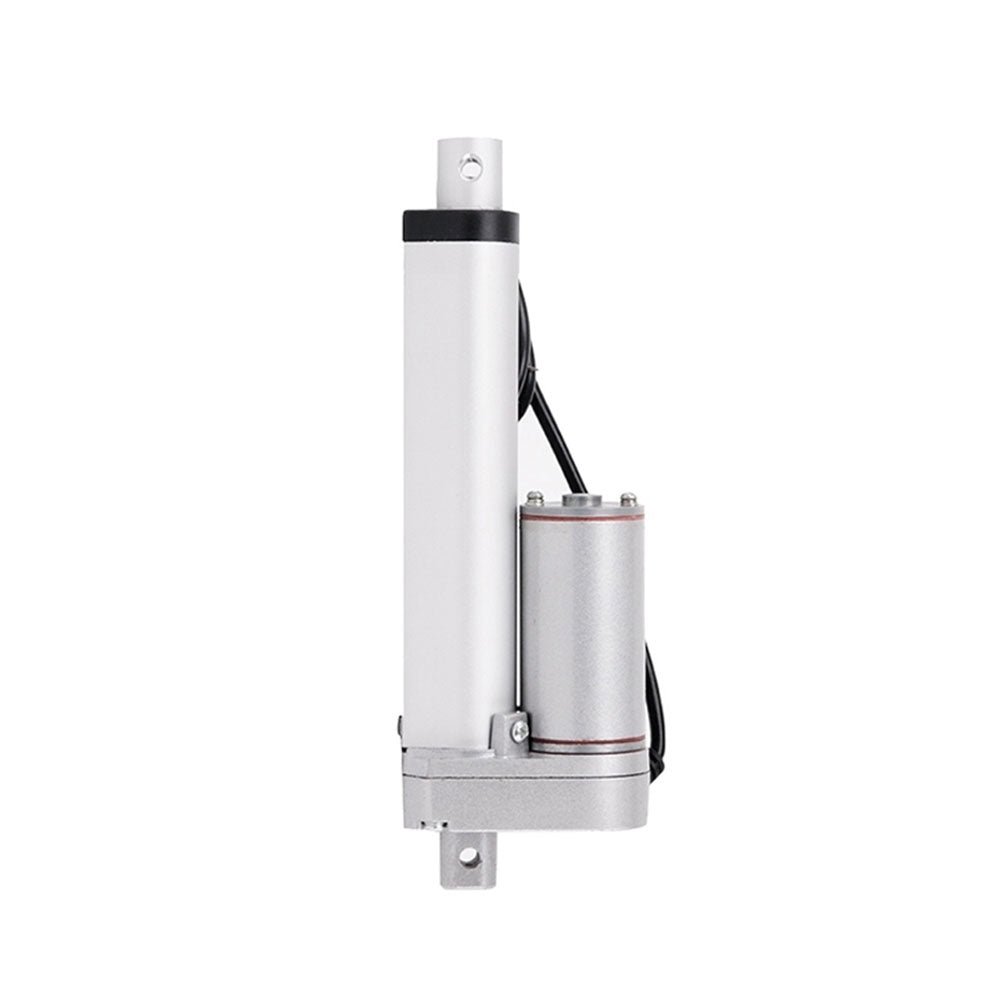

2PCS 4 Inch 4" Stroke Linear Actuator 12 Volt 12V 225 Pounds lbs Maximum Lift

2PCS 4 Inch 4" Stroke Linear Actuator 12 Volt 12V 225 Pounds lbs Maximum Lift

Regular price $ 62.99 USD
Regular price Sale price $ 62.99 USD
Sale Sold out

Material: Made of high quality aluminum alloy, sturdy and durable.

Specification: Stroke Length = 100mm(4"); Retracted length: 8.13"(205mm); Extended length: 12.13"(305mm); Travel speed = 12 mm/s; Maximum current draw = 4.6 Amps; Maximum Dynamic Load = 225 lbs (900N)

Low noise: silent and stable, make sound lower than 50db, suitable for many situations.

Waterproof: IP55 Rated protection sealed against dust, water, and corrosion suitable for outdoors use.

Wide application: Commonly Used in Automotive, home furniture, medical devices, industrial construction and agricultural machineries.

Specification:

Maximum current draw = 4.6 Amps
Maximum Dynamic Load = 225 lbs (900N)
Maximum Static Load = 600 lbs
Retracted length: 8.13"(205mm)
Extended length: 12.13"(305mm)
Diameter of Mounting hole: 0.256"(6.5mm)
Diameter of Shaft: 0.79"(20mm)
Stroke Length: 4 inches
Travel speed: 12 mm/s
