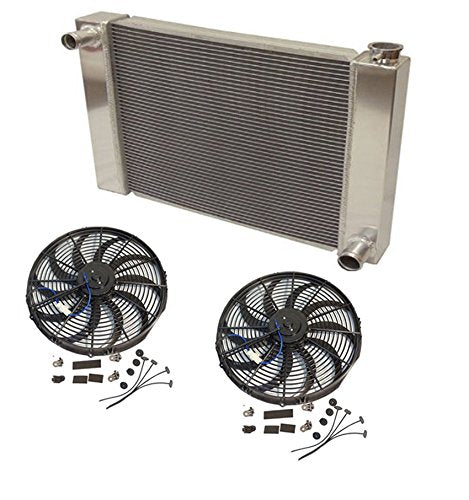

24" x 19" x 3" Overall Radiator For SBC BBC Chevy GM With 2pcs 12 Inch Electric Fan

Fabricated Aluminum Radiator 24" x 19" x 3" Overall For SBC BBC Chevy GM:
Dimension:
overall size: 23 7/8"W x 18 3/8"H x3"D
core size: 18 1/4 " x 17 5/8" x 2 1/4"
Inlet:1 1/2",Outlet: 1 3/4"
Application:
Universal type,no specific application,fits on almost any street rod application.
Description:
2 row radiator with 1" tubes
Crossflow Design for better Cooling
2-1/8" C-Channel Style Mounting Flanges (flanges are approximately 1/2" tall)
No Built in Transmission Cooler
Brand new GM style Competition Row Radiator The upper and lower outlets are set up for a Chevy engine.100% Tig welded, no epoxy!
Fan:
1) Brand new radiator cooling fan blade for Universal use
2) Maximum Fan FAN CFM=2000 CFM
3) Thickness=2.5"
4) Maximum Fan RPM=2250 RPM
5) 10 Blades
6) 12 Volts
7) 6.6 AMP DRAW
8) Easy direct installation, require NO modification
9) OE Fitment or Replacement, Push or Pull Type
10) Size: 12"

Application:
Universal
Package:
--including all items in the picture.
Note?Professional installation is strongly required.No installation instruction is attached in the package.
