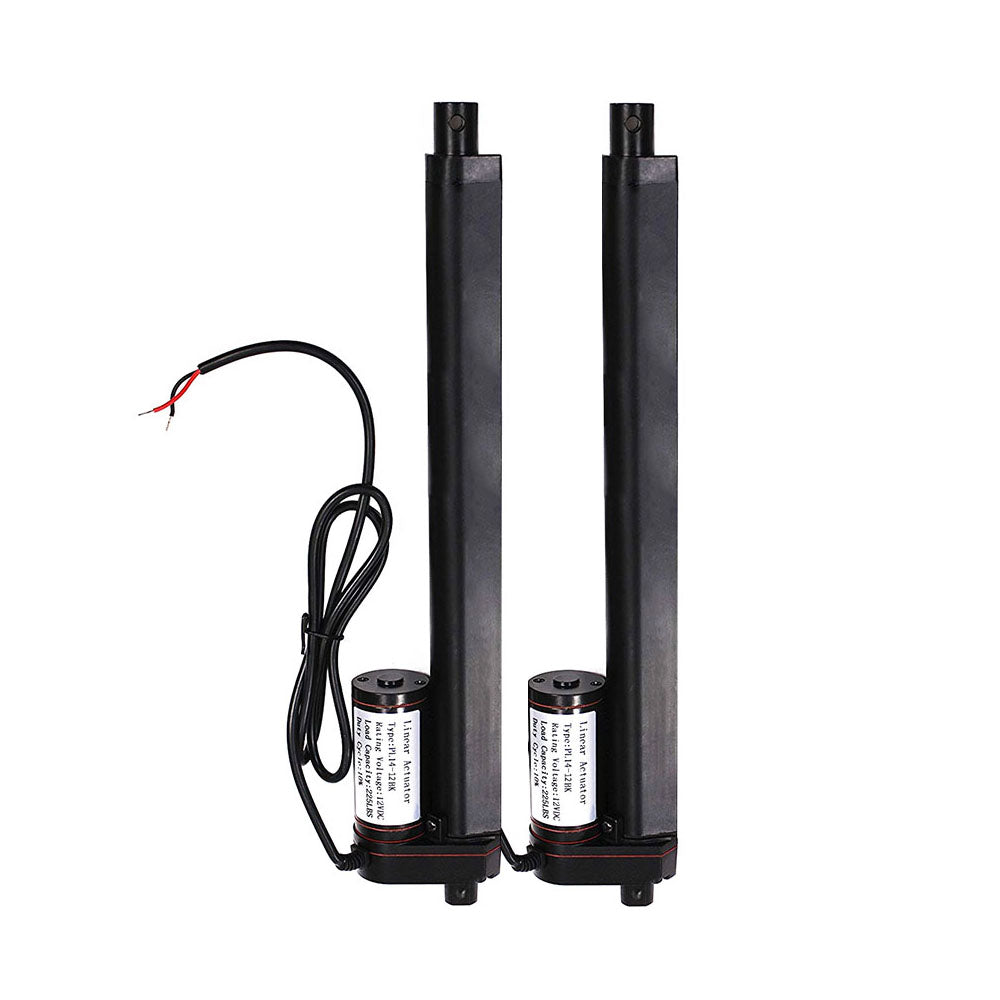

2 pcs 12 Inch 12" Stroke Linear Actuator 12Volt 12V 225 Pounds lbs Maximum Lift
-
Estimated Delivery:Jan 19 - Jan 23
-
Free Shipping & Returns: Free shipping on all US and CA order
2 pcs 12 Inch 12" Stroke Linear Actuator 12Volt 12V 225 Pounds lbs Maximum Lift
Description:Includes 2pcs 12" linear actuator,--Actuator Stroke Length = 12 inches,
--Travel speed = 0.39 inches/sec (10 mm/s)
--Actuator Maximum Dynamic Load = 225 lbs (900N), Maximum Static Load = 600 lbs, Maximum current draw = 4.6 Amps
--IP65 rated (suitable for outdoor use).
--Exterior material is 6061 Aluminum (powder coated black)--Retracted length: 16.13"(410mm)
--Extended length: 28.13"(714mm)
--Diameter of Mounting hole: 0.256"(6.5mm)
--Diameter of Shaft: 0.79"(20mm)Linear actuators are actuators which create motion in a straight line. Unlike a motor, which creates circular motion, a linear actuator can be used with any application that requires moving something in a straight line (e.g. up and down or side to side). These Linear Actuators are a powerful and reliable linear actuator for small to medium loads. We designed our linear actuator with pre-lubricated metal gears, pre-installed limit switches, and with an IP65 (suitable for outdoor use) water resistance rating.
Note:Professional Installation is Highly Recommended (No Instruction and Wiring Diagram Included)Comes with all items in the picture.
