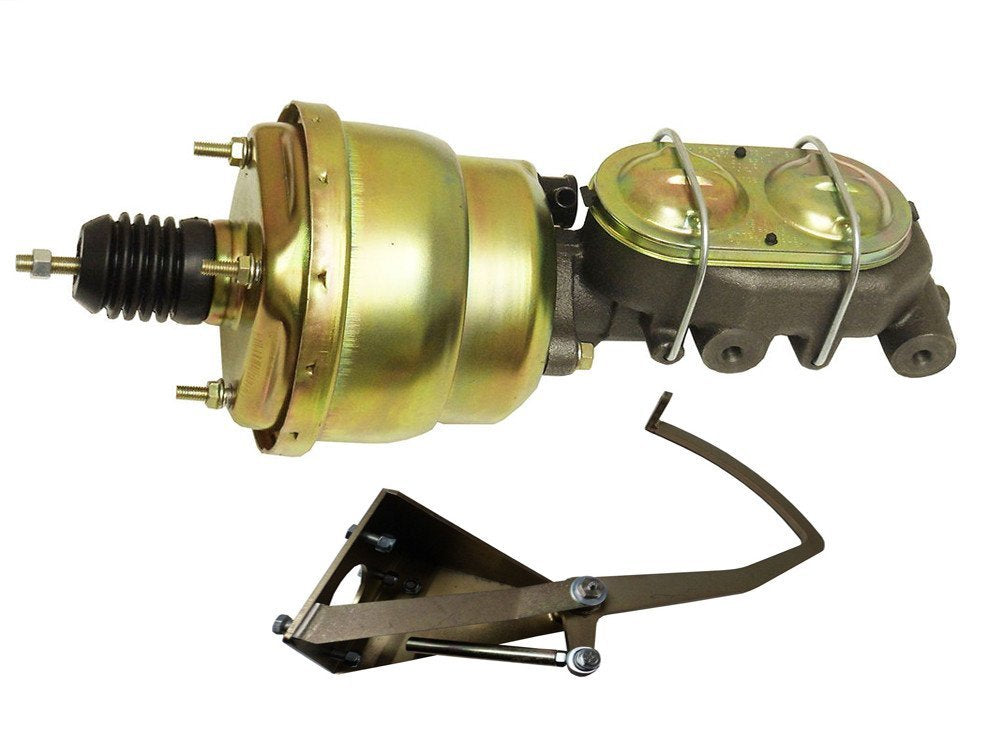

1955-1959 Mount Power Brake Pedal Bracket Kit with 7" Brake Booster & Master Cylinder
1955-1959 Mount Power Brake Pedal Bracket Kit with 7" Brake Booster & Master Cylinder
Regular price
$ 145.09 USD
Regular price
Sale price
$ 145.09 USD
Unit price
/
per
7" Brake Booster
Description:
--The booster will bolt up to most street rods, hot rods, and many other vehicles . It also offers approximately 20% (some say up to 27%) more stopping power.
--Standard 2 bolt brake master cylinder on top. Has 4 bolts on bottom that mount to the firewall with 3 3/8" spacing.
Master Cylinder
Application:
--Fit most GM application.This is Corvette style master cylinder.
Description:
--100% brand new,high performance
--Cast iron coated body,dual ball zinc cap
--With a 1" bore
--The cap is attached by 2 small screws
--4 port unit,so you can mount your lines on either side
--With 3/8" fitting
--will work with any drum/drum, disc/drum or disc/disc setup
--Plugs are included to block the ports
1955-1959 Mount Power Brake Pedal
Application:
Fits 55 56 57 58 59 CHEVY & GMC PICKUP TRUCKS ; FITS CHEVY 3100, 1/2 TON (1500), 3/4" TON (2500) 1 TON (3500) LONG BED AND SHORT BED, HOT ROD TRUCKS, STREET ROD TRUCKS, RAT ROD TRUCKS, ETC.
Description:
--Mounts brake booster and/or master cylinder to the frame
--Works with all aftermarket 7" & 8" single & dual diaphragm boosters with gm style master cylinders
Can be used with booster/master cylinder combo or just the gm style master cylinder
--Pedal arm has a pre drilled 7/16" hole for pedal pad
--This unit is paintable (it is zinc coated as pictured)
--Fits chevy fleetline, bel air, master deluxe, hot rod, street rod, rat rod, etc.
--For use with automatic transmission only
--Will not work in conjunction with factory clutch pedal
--All hardware is included as pictured
Note?Professional Installation is Highly Recommended (No Instruction Included)
Description:
--The booster will bolt up to most street rods, hot rods, and many other vehicles . It also offers approximately 20% (some say up to 27%) more stopping power.
--Standard 2 bolt brake master cylinder on top. Has 4 bolts on bottom that mount to the firewall with 3 3/8" spacing.
Master Cylinder
Application:
--Fit most GM application.This is Corvette style master cylinder.
Description:
--100% brand new,high performance
--Cast iron coated body,dual ball zinc cap
--With a 1" bore
--The cap is attached by 2 small screws
--4 port unit,so you can mount your lines on either side
--With 3/8" fitting
--will work with any drum/drum, disc/drum or disc/disc setup
--Plugs are included to block the ports
1955-1959 Mount Power Brake Pedal
Application:
Fits 55 56 57 58 59 CHEVY & GMC PICKUP TRUCKS ; FITS CHEVY 3100, 1/2 TON (1500), 3/4" TON (2500) 1 TON (3500) LONG BED AND SHORT BED, HOT ROD TRUCKS, STREET ROD TRUCKS, RAT ROD TRUCKS, ETC.
Description:
--Mounts brake booster and/or master cylinder to the frame
--Works with all aftermarket 7" & 8" single & dual diaphragm boosters with gm style master cylinders
Can be used with booster/master cylinder combo or just the gm style master cylinder
--Pedal arm has a pre drilled 7/16" hole for pedal pad
--This unit is paintable (it is zinc coated as pictured)
--Fits chevy fleetline, bel air, master deluxe, hot rod, street rod, rat rod, etc.
--For use with automatic transmission only
--Will not work in conjunction with factory clutch pedal
--All hardware is included as pictured
Note?Professional Installation is Highly Recommended (No Instruction Included)
