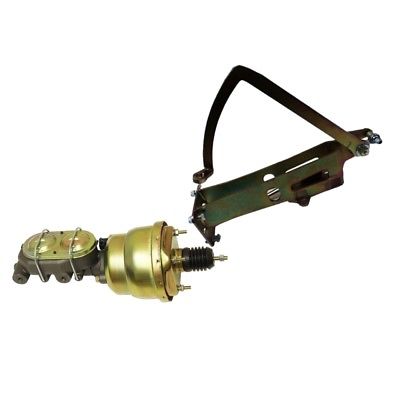

1949-1954 Mount Power Brake Pedal Bracket Kit with 7" Brake Booster & Master Cylinder

1949-1954 Mount Power Brake Pedal Bracket Kit with 7" Brake Booster & Master Cylinder

Regular price $ 172.96 USD
Regular price Sale price $ 172.96 USD
Sale Sold out
7" Brake Booster
Description:
--The booster will bolt up to most street rods, hot rods, and many other vehicles . It also offers approximately 20% (some say up to 27%) more stopping power.
--Standard 2 bolt brake master cylinder on top. Has 4 bolts on bottom that mount to the firewall with 3 3/8" spacing.

Master Cylinder
Application:
--Fit most GM application.This is Corvette style
Description:
--Cast iron coated body,dual ball zinc cap
--With a 1" bore
--The cap is attached by 2 small screws
--4 port unit,so you can mount your lines on either side
--With 3/8" fitting
--will work with any drum/drum, disc/drum or disc/disc setup
--Plugs are included to block the ports

1949-1954 Chevy Mount Brake Pedal Assembly
Application:
Fits CHEVY CARS 1949 1950 1951 1952 1953 1954; FITS WITH SB & BB CHEVY 216 235 265 283 305 327 350 383 400 396 454 572 502 SBC BBC
Description:
--Mounts brake booster and/or master cylinder to the frame
--Works with all aftermarket 7" & 8" single & dual diaphragm boosters with gm style master cylinders
Can be used with booster/master cylinder combo or just the gm style master cylinder
--Pedal arm has a pre drilled 7/16" hole for pedal pad
--This unit is paintable (it is zinc coated as pictured)
--Fits chevy fleetline, bel air, master deluxe, hot rod, street rod, rat rod, etc.
--For use with automatic transmission only
--Will not work in conjunction with factory clutch pedal
--All hardware is included as pictured.
