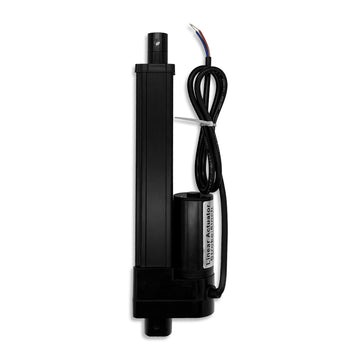

10mm/s 6 Inch 6" Stroke Silent Mode Black Linear Actuator DC12V 1500N IP55

DESCRIPTION

--Silent mode linear actuator, noise level: 35~40 dB.

--Made of high-quality aluminum alloy, sturdy and durable.

--IP55-rated protection sealed against dust, water, and corrosion suitable for outdoor use.

--Linear actuators are actuators that create motion in a straight line. Unlike a motor, which creates circular motion, a linear actuator can be used with any application that requires moving something in a straight line.

--Our linear actuators are powerful and reliable linear actuators for small to medium loads.

--Finish: black coated

--Stroke length: 6" (150mm)

--Retracted length: 10" (255mm)

--Extended length: 16'' (405mm)

--Diameter of mounting hole: 0.236" (6mm)

--Diameter of shaft: 0.79" (20mm)

--Travel speed: 10mm/s

--Duty cycle: 20%

--No-load current: 0.5A

--Max load current: 2.5A

--Maximum dynamic load: 330 lbs (1500N)

--Package: Including all items in the pictures.

Note: Professional Installation is Highly Recommended.

How to protect your actuator?

Please use the 12V DC power adapter.

The actual load does not exceed the rated load.

All the actuators have duty cycles, they are unable to work all the time without stopping.

The actuator is not completely waterproof.
