Plenum Material: Aluminum
Base Material: Aluminum
Injection Style: Multi-port
Basic Operating RPM Range: 2,200-6,800
Supplemental Boss Quantity: Four
Throttle body size: 92mm
This fabricated aluminum sheet metal intake manifold improves the look and performance of your LS engine.
The intake will not bend or flex with boost or vacuum
The runners are velocity stacked, allowing air to move more smoothly at high velocities.
Individual port o-rings guarantee a good seal with the cylinder heads.
Available in silver or black anodized finishes, this manifold will also give your engine bay a nice, clean aesthetic.
Compatible with cathedral style LS1 LS2 LS6 4.8/5.3/5.7/6.0 heads
Throttle body optimizing more airflow to your engine.
Increases airflow via a series of innovative design changes and an enlarged opening
A large throttle body is important to making additional power throughout the entire rev range on forced induction/naturally aspirated vehicle.

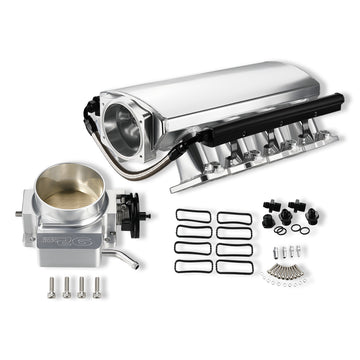

Includes silver 102mm intake manifold, 92mm throttle body, black fuel rails, fuel crossover line and other fitting hardware.
Note: Mounting flange contains extra holes that are used in the manufacturing process; These do not affect performance or reliability since LS intake manifolds use individual port seals rather than a traditional flat gasket. Includes runner o-rings and throttle body o-ring.
