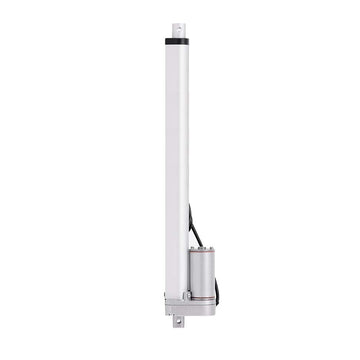

14 Inch 14" Stroke Linear Actuator 12 Volt 12V 225 Pounds lbs Maximum Lift

14 Inch 14" Stroke Linear Actuator 12 Volt 12V 225 Pounds lbs Maximum Lift

Regular price $ 57.99 USD
Regular price Sale price $ 57.99 USD
Sale Sold out
  • Material: Made of high quality aluminum alloy, sturdy and durable.
  • Specification: Stroke Length = 350mm(14"); Retracted length: 18.1"(460mm); Extended length: 32"(815mm); Travel speed = 12 mm/s; Maximum current draw = 4.6 Amps; Maximum Dynamic Load = 225 lbs (900N)
  • Low noise: silent and stable, make sound lower than 50db, suitable for many situations.
  • Waterproof: IP55 Rated protection sealed against dust, water, and corrosion suitable for outdoors use.
  • Wide application: Commonly Used in Automotive, home furniture, medical devices, industrial construction and agricultural machineries.

Maximum current draw = 4.6 Amps

Maximum Dynamic Load = 225 lbs (900N)

Maximum Static Load = 600 lbs

Retracted length: 18.1"(460mm)

Extended length: 32"(815mm)

Diameter of Mounting hole: 0.256"(6.5mm)

Diameter of Shaft: 0.79"(20mm)

Stroke Length: 14 inches

Travel speed: 12 mm/s
